Designed for efficient undercar transmission fluid service. The 6L pump extract fluids in minutes with shop air connected, ensures high extraction speed and automatic dispensing. Comes with 8 adapters for various vehicle manufacturers fluid extraction and transfer.
Not enough stock.
Your item was not added to your cart.
Not enough stock.
Please adjust your quantity.
Limit {{ product.max_order_quantity }} per order.
Only {{ quantityOfStock }} item(s) left.

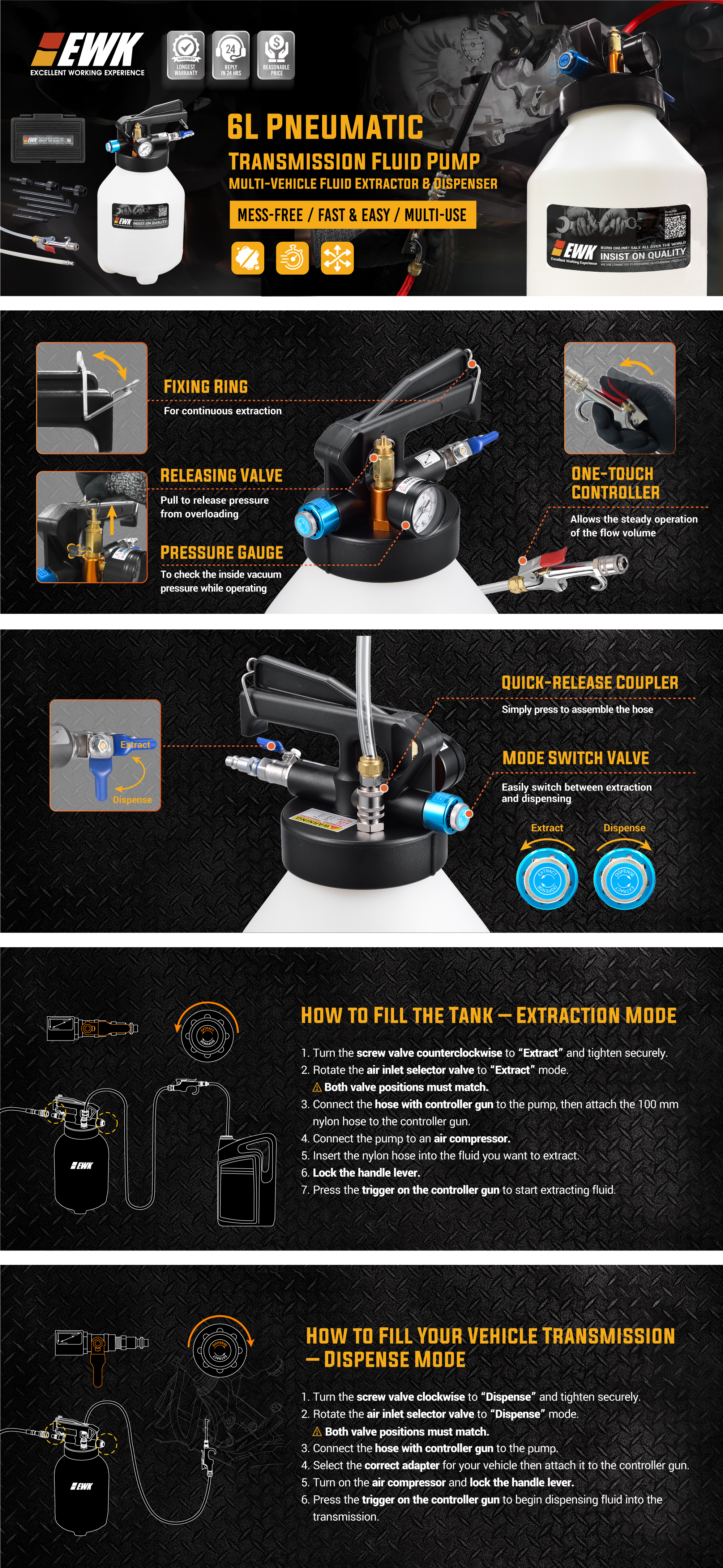

▲ Two Way designed ATF fluid refill pump with extraction & dispense dual functions.
▲ The mode switch valve (blue screw knob) must consistent with the flow direction to change the mode of extracting or dispensing.
▲ With volume markere for easily reading and controlling liquid volumes.
▲ The quick release coupler allows quick disconnect the hose by one simple press.
▲ With one touch controller control stable fulid volume and do the jobs on one's own easily.
▲ Comprehensive adaptors with a blow-molded case, compatible with Audi, Ford, Nissan, Benz, VW, Skoda and many others.
▲ The maximum working pressure: Extracting 170 psi / Dispensing 43psi.
▲ Gasoline and fluids with high volatility, high corrosion, high alkalinityand high temperature are FORBIDDEN to be used on the extractor.
▲ Always wear correct personal protective accouterments.
▲ Do not disassemble the structure by yourself unless necessary to avoid leakage or damage to the vacuum pump, please rinse the reservoir by evacuating system if need to clean the pump.

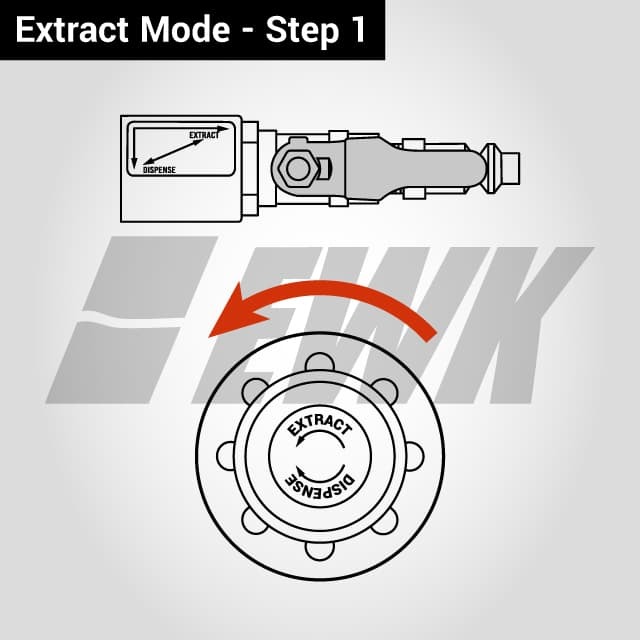

1. Turn the mode switch valve to "EXTRACT" and flow direction lever to extraction mode.

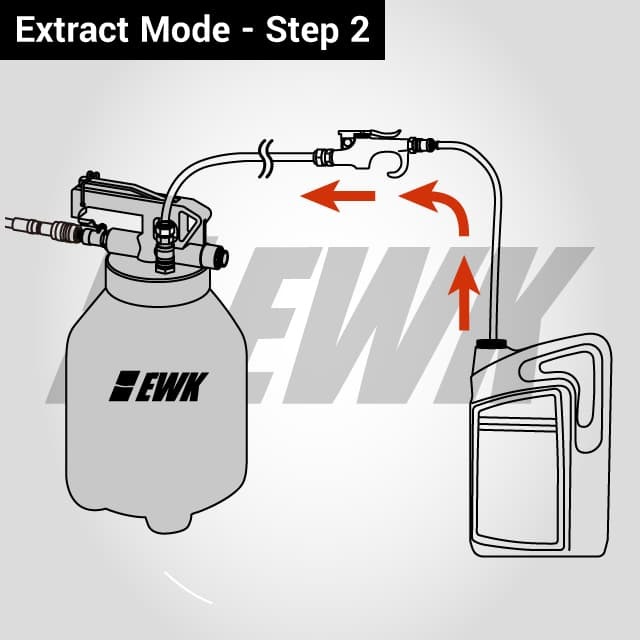

2. Connect the fluid dispenser gun hose and insert the housing into the new ATF fluid.
3. Connect the pump to air compressor and lock the trigger lock.
4. Press the hose trigger to start to fill the tank.

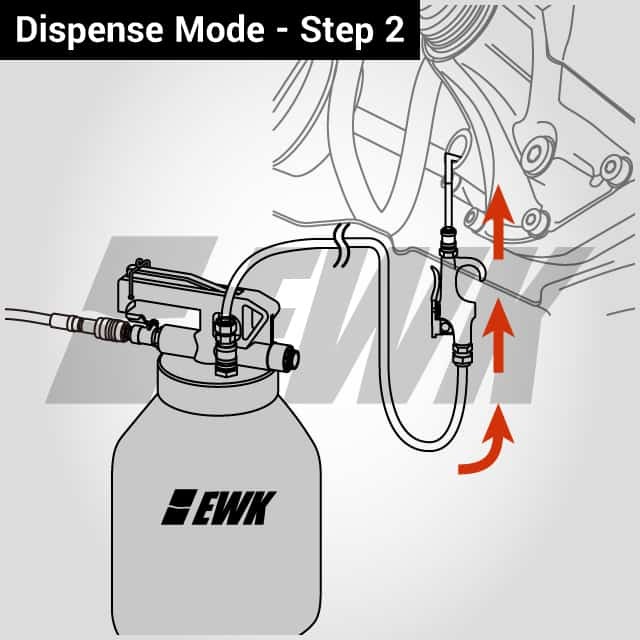

1. Install a suitable adapter on the fluid dispenser gun.

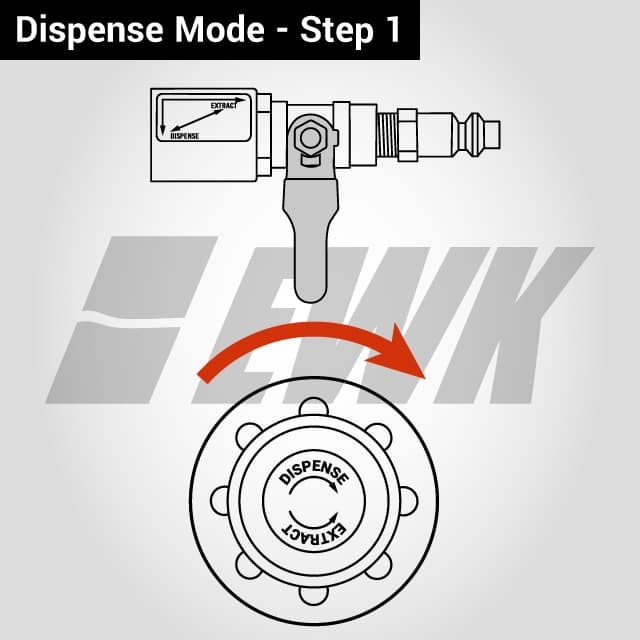

2. Turn the mode switch valve to "DISPENSE" and flow direction lever to dispense mode.
3. Connect the adapter to the filler hole and lock the trigger lock.
4. Press the hose trigger to start transferring fluid to your transmission.
